Getting Started

Example Project

The example application is the best way to learn how this framework works and to get started. It shows how to set up handler classes for TC and TM handling and then ties together all components. You can also run this application in GUI mode by passing the -g GUI flag to the example application.

Some explanation of classes and modules inside the example are given here.

The Configuration Hook Class

The class ExampleHookClass is the example configuration class implementing the tmtccmd.config.hook.HookBase. There are two functions which must be impelemented by a user:

  1. The tmtccmd.config.hook.HookBase.get_communication_interface() method is used to return a communication interface given a string identifier. You can read more about the communication abstraction in the Communication Abstraction chapter.

  2. The tmtccmd.config.hook.HookBase.get_command_definitions() returns a tree of command definition which can be used by both users and developers to specify the available commands and procedures.

TC Command Definition Specification

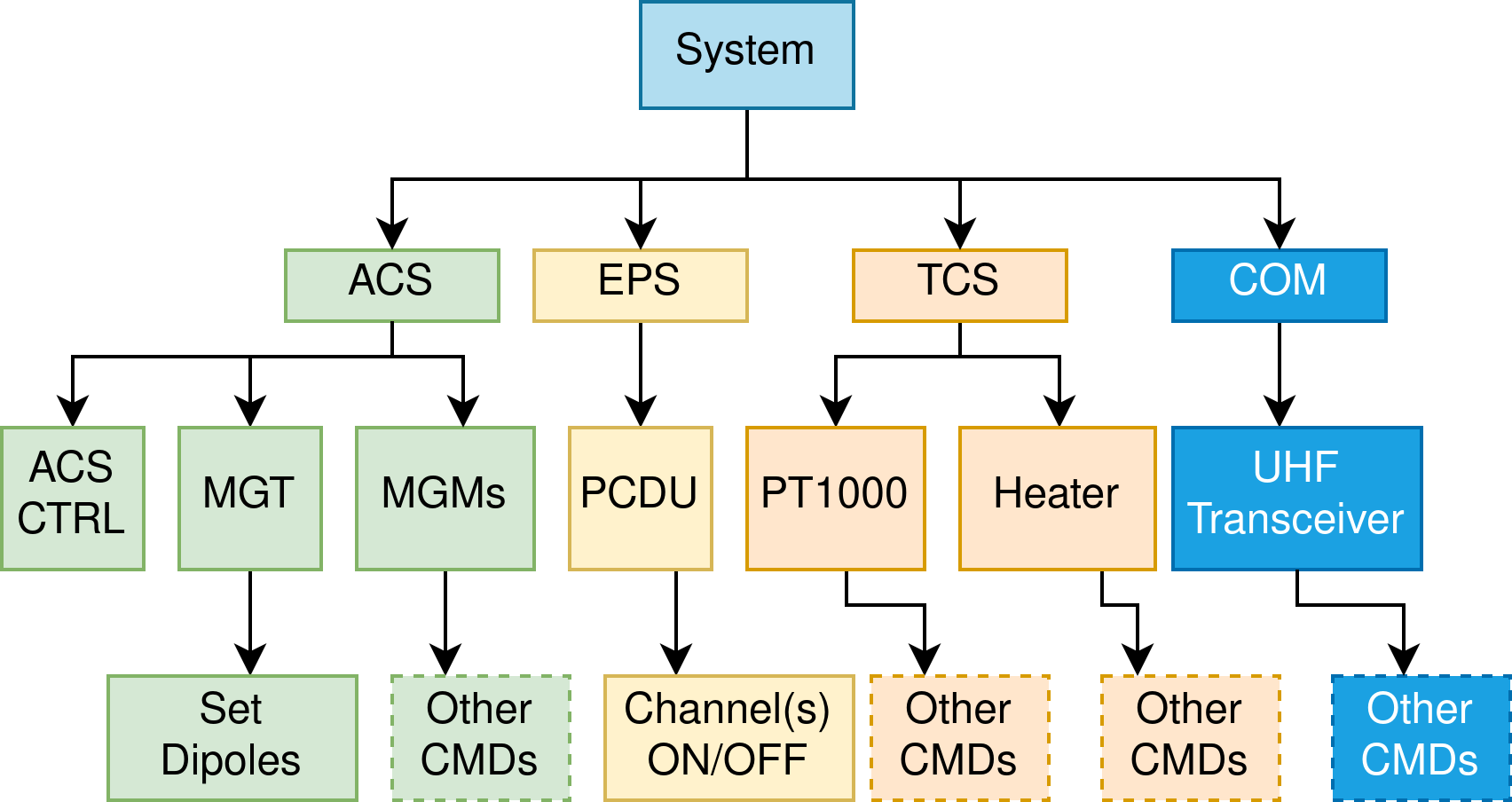

The command tree mechanism provides a flexible mechanism to also model the command definitions for more complex systems. These systems are oftentimes structured into dedicated modules. For exampe, the command tree for a satellite system might look like this:

_images/example_system.png

For a system like this, it makes a lot of sense to also model the command definitions similarly to the system. An example tree modelling the system shown in the example above would look like this when printing one built using the tmtccmd.config.tmtc.CmdTreeNode:

/                                   [ Root Node ]
├── ping                            [ Send PUS ping command ]
├── test                            [ Test Node ]
│  └── event                        [ Send PUS event test command ]
├── system                          [ System Commands ]
├── acs                             [ ACS Subsystem ]
│  ├── acs_ctrl                     [ ACS Controller ]
│  ├── mgt                          [ Magnetorquer ]
│     └── set_dipoles               [ Set MGT Dipoles ]
│  ├── mgm0                         [ Magnetometer 0 ]
│     └── other cmds                [ Other MGM commands ]
│  └── mgm1                         [ Magnetometer 1 ]
│     └── other cmds                [ Other MGM commands ]
├── tcs                             [ TCS Subsystem ]
│  ├── tcs_ctrl                     [ TCS Controller ]
│  ├── pt1000                       [ Temperature Sensor ]
│  └── heater                       [ Heater ]
├── com                             [ COM Subsystem ]
│  └── uhf_transceiver              [ UHF Transceiver ]
└── eps                             [ EPS Subsystem ]
   └── pcdu                         [ PCDU ]
      ├── channel_0_on              [ Channel 0 on ]
      ├── channel_0_off             [ Channel 0 off ]
      ├── channel_1_on              [ Channel 1 on ]
      └── channel_1_off             [ Channel 1 off ]

and the code to create this tree would look like this:

def get_command_definitions(self) -> CmdTreeNode:
    root_node = CmdTreeNode.root_node()
    root_node.add_child(CmdTreeNode("ping", "Send PUS ping command"))
    root_node.add_child(CmdTreeNode("test", "Test Node"))
    root_node.children["test"].add_child(
        CmdTreeNode("event", "Send PUS event test command")
    )
    root_node.add_child(CmdTreeNode("system", "System Commands"))
    root_node.add_child(CmdTreeNode("acs", "ACS Subsystem"))
    root_node["acs"].add_child(CmdTreeNode("acs_ctrl", "ACS Controller"))
    root_node["acs"].add_child(CmdTreeNode("mgt", "Magnetorquer"))
    root_node["acs"]["mgt"].add_child(CmdTreeNode("set_dipoles", "Set MGT Dipoles"))
    root_node["acs"].add_child(CmdTreeNode("mgm0", "Magnetometer 0"))
    root_node["acs"].add_child(CmdTreeNode("mgm1", "Magnetometer 1"))
    mgm_node = CmdTreeNode("other cmds", "Other MGM commands")
    root_node["acs"]["mgm0"].add_child(mgm_node)
    root_node["acs"]["mgm1"].add_child(mgm_node)
    root_node.add_child(CmdTreeNode("tcs", "TCS Subsystem"))
    root_node["tcs"].add_child(CmdTreeNode("tcs_ctrl", "TCS Controller"))
    root_node["tcs"].add_child(CmdTreeNode("pt1000", "Temperature Sensor"))
    root_node["tcs"].add_child(CmdTreeNode("heater", "Heater"))
    root_node.add_child(CmdTreeNode("com", "COM Subsystem"))
    root_node["com"].add_child(CmdTreeNode("uhf_transceiver", "UHF Transceiver"))
    root_node.add_child(CmdTreeNode("eps", "EPS Subsystem"))
    root_node["eps"].add_child(CmdTreeNode("pcdu", "PCDU"))
    root_node["eps"]["pcdu"].add_child(CmdTreeNode("channel_0_on", "Channel 0 on"))
    root_node["eps"]["pcdu"].add_child(
        CmdTreeNode("channel_0_off", "Channel 0 off")
    )
    root_node["eps"]["pcdu"].add_child(CmdTreeNode("channel_1_on", "Channel 1 on"))
    root_node["eps"]["pcdu"].add_child(
        CmdTreeNode("channel_1_off", "Channel 1 off")
    )
    return root_node

You can now specify your commands as command paths, which will then serve as identifier for single command or command stacks and procedures. The command path will be passed on as the cmd_path parameter of the tmtccmd.tmtc.procedure.DefaultProcedureInfo which is passed to the tmtccmd.tmtc.handler.TcHandlerBase implementation of the user.

It is also possible to pass the command path as a CLI argument. For example, you can use ./tmtcc.py -p /test to send a ping command with the example application. Passing the command tree definition to the framework also allows it to provide a GUI command path selector for the GUI mode.

It is optionally possible to pass a command history to the framework by implementing the tmtccmd.config.hook.HookBase.get_cmd_history() function. An example implementation using the prompt_toolkit.history.FileHistory class would look like this:

def get_cmd_history(self) -> Optional[History]:
    """Optionlly return a history class for the past command paths which will be used
    when prompting a commad path from the user in CLI mode."""
    return FileHistory(".tmtc-cli-history.txt")

The TC handler

This object is responsible for the telecommand handling. Therefore this object implements the tmtccmd.tmtc.handler.TcHandlerBase.

In the example case, the handler object is reponsible for returning telecommand queues based on input information. This task is done by the tmtccmd.tmtc.handler.TcHandlerBase.feed_cb() callback method.

The actual handling of telecommand queue entries is done in the tmtccmd.tmtc.handler.TcHandlerBase.send_cb() method implementation. One thing to note here is that a queue entry does not necessarily have to be a command to be sent. For example, the queue can also contain something like log requests or delay requests, or even complete custom requests. These requests can then be handled by the user.

The PUS TM handler

This object is responsible for the handling of PUS telemetry. In the example case, the handler object is responsible space packets with a certain application process identifier (APID). Therefore, this object implements the tmtccmd.tmtc.common.SpecificApidHandlerBase.

The handle_tm method implementation is the primary functions where incoming PUS packets are handled. This can something like prinouts or logging, either to a file or to a database.

Other example applications

The EIVE and SOURCE project implementation of the TMTC commander provide more complex implementations.
